Samsung SONOACE R3 Ultrasound Diagnostic System


(Including CN2-8 & EC4-9 Transducers)

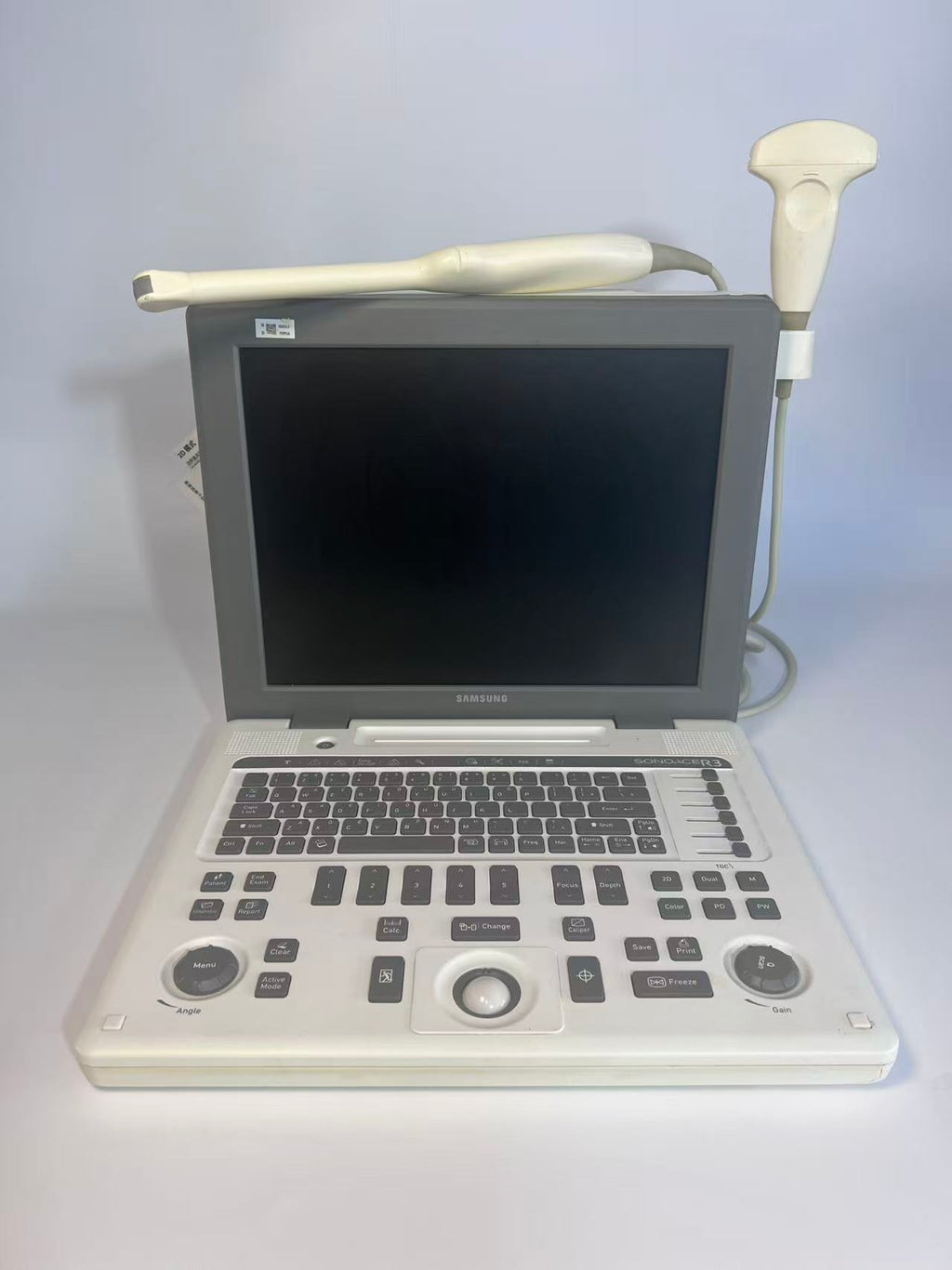

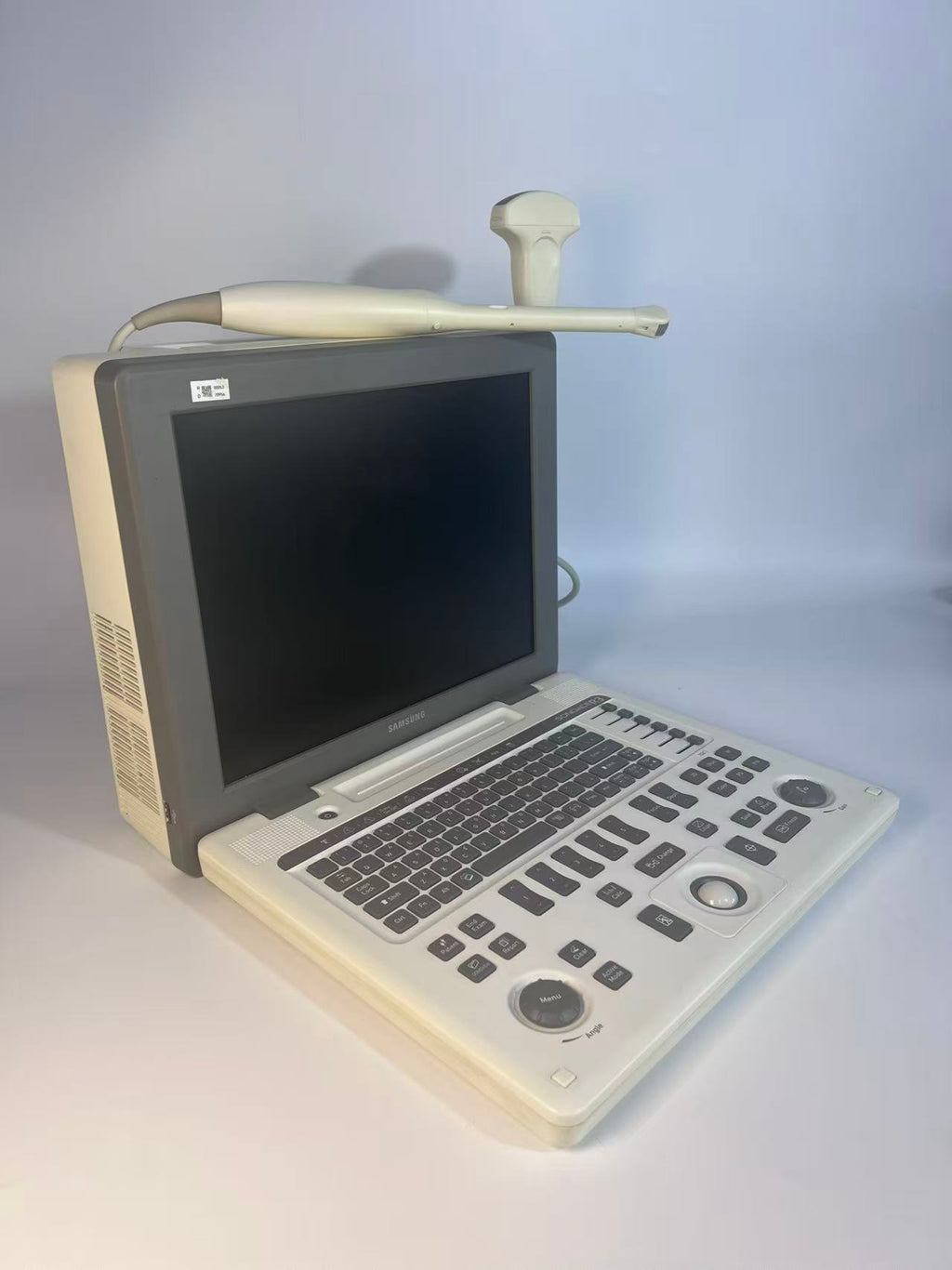

I. Main Unit (SONOACE R3)


Core Positioning: Samsung Medison portable color Doppler ultrasound system, weighing less than 10 kg. Suitable for bedside, emergency, mobile scanning and multi-department applications.

  • Display: 15-inch LCD color monitor with high-definition video output.
  • Imaging Technologies:
    • Tissue Harmonic Imaging (THI), Native Tissue Harmonic Imaging (NTHI)
    • Frequency Compound Imaging (FSI), speckle reduction, ultra-high dynamic range (180 dB)

  • Doppler Functions: Color / Power / Pulsed Wave Doppler (PW), High Pulse Repetition Frequency (HPRF)

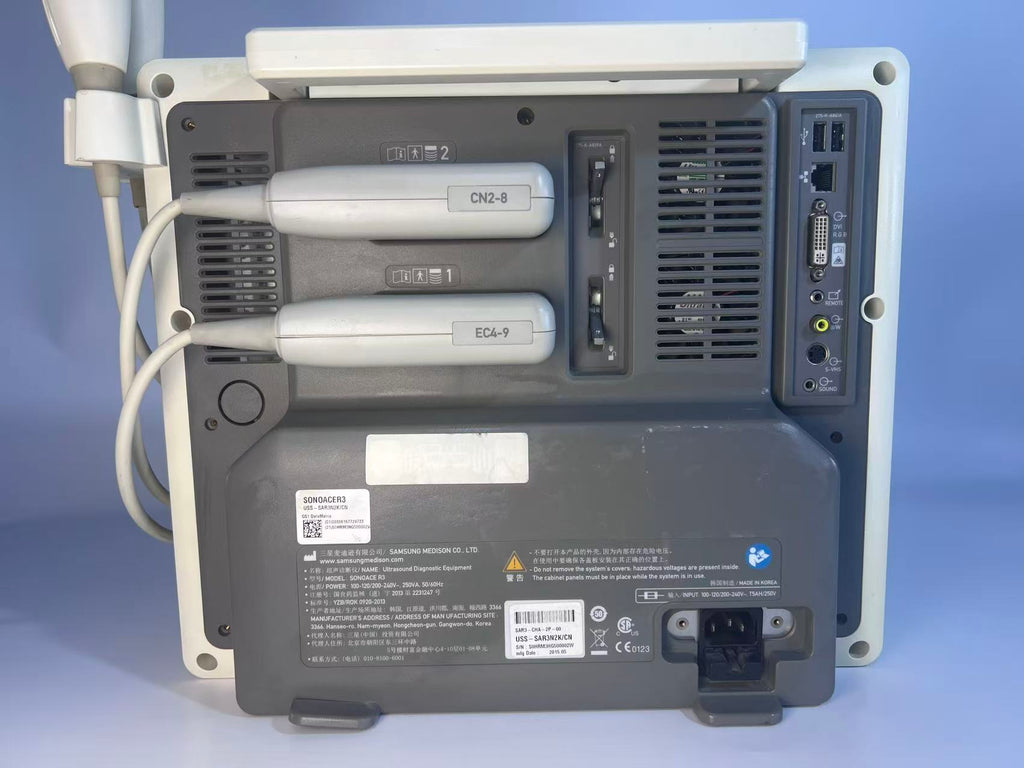

  • Transducer Ports: 2 active transducer connectors with hot-swap support.
  • Storage & Connectivity: 3×USB ports, DICOM 3.0, 511-frame Cine playback, SonoView image management.
  • Applicable Departments: Abdomen, Obstetrics & Gynecology, Urology, Small Parts, Cardiovascular, Musculoskeletal, Pediatrics / Neonatology.

II. Transducer CN2‑8 (Convex Array)


Type: Broadband convex array, compatible with R3/R5.

  • Frequency: 2.0–8.0 MHz (low frequency for deep penetration, high frequency for high resolution)
  • Clinical Applications:
    • Abdomen: Liver, gallbladder, pancreas, spleen, kidneys
    • Obstetrics & Gynecology: Fetus, pelvic cavity
    • Pediatrics, small parts, musculoskeletal and veterinary use

  • Features: Wide field of view, strong penetration. Combined with harmonic and compound imaging of the R3, it provides clear imaging for both deep and superficial tissues.

III. Transducer EC4‑9 (Endocavity)


Type: Endocavity convex array, compatible with R3/R5.

  • Frequency: 4.0–9.0 MHz (high frequency, high resolution at close range)
  • Clinical Applications:
    • Obstetrics & Gynecology: Transvaginal scanning, early pregnancy, gynecological masses, follicular monitoring
    • Urology: Prostate, seminal vesicles, bladder neck

  • Features: Slim handle, small curvature, adapted to endocavity anatomy. Clearly displays fine structures at close range; 3D/4D imaging available as an option.

IV. Advantages of the Complete System (R3 + CN2‑8 + EC4‑9)


  • Versatility: CN2‑8 provides wide field-of-view scanning for abdomen and obstetrics, while EC4‑9 specializes in endocavity examination for gynecology and urology, covering full scenarios from outpatient to bedside.
  • Portability & Efficiency: Lightweight main unit, dual transducer ports for quick switching, ideal for shared department use and mobile consultations.
  • High Image Clarity: Harmonic imaging + frequency compounding + broadband transducers balance penetration and resolution, helping reduce misdiagnosis.
